Calculation of elbow angles**

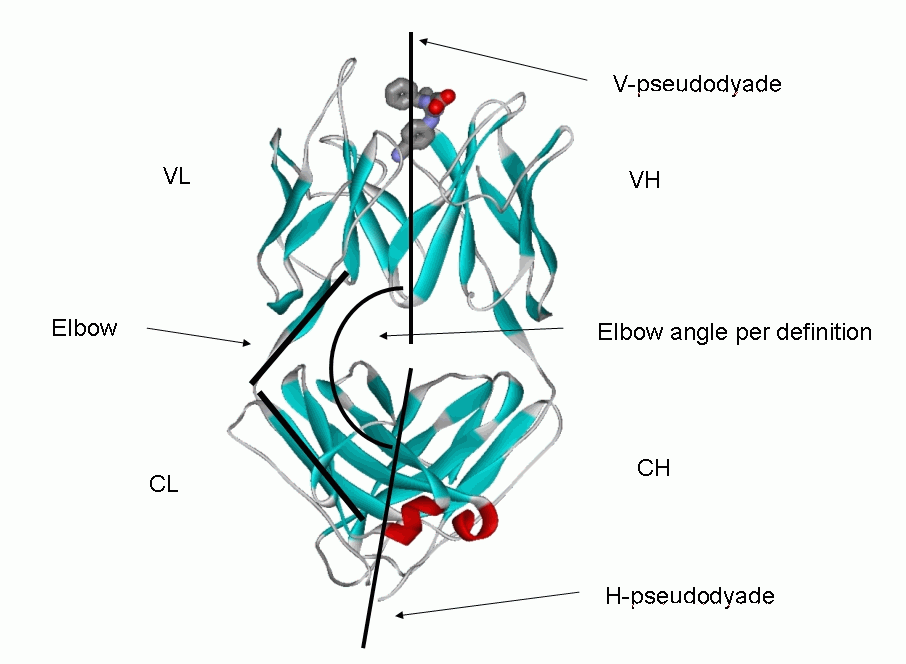

The elbow
angle of a Fab antibody fragment is defined as the intersection angle of the two
pseudo-dyad axes (PDAs) generated by the superposition of the light chain
variable domain (V_{L}) onto the heavy chain variable domain (V_{H}),
and of the light chain constant domain (C_{L}) onto the heavy chain
constant domain (C_{H}1). As a measure for the relative orientation
between the variable and the constant Fab domains, the elbow angle has been used
in the comparison of liganded versus unliganded Fab structures and in assessment
of Fab switch region flexibility.

However,
for a comparison between different Fabs on a common scale, two problems need to
be addressed: First, the elbow angle calculated as the dot product of the V_{L}-V_{H}
and C_{L}-C_{H}1 pseudo-dyad angle always computes between 0 and
180°. Although one could readily determine the absolute value in mathematical
terms through the sign of the determinant of the basis matrix formed by the two
pseudo-dyad vectors and their cross product vector, this does not overcome the
problem: Due to the reduction of information to a single scalar angle value, the
relative orientation of the axes is lost, and the solutions become degenerate
(imaginable as located on a cone) between 90° to 180°.

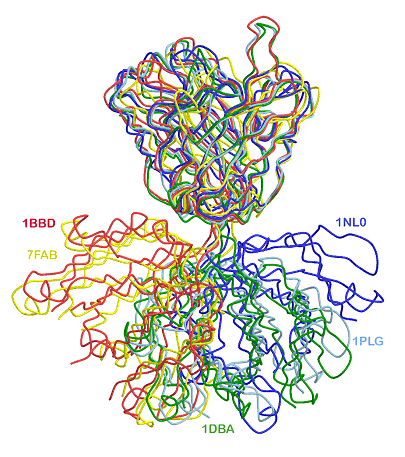

To regain the domain orientation on an absolute scale and to solve the
complement ambiguity, one can compare each Fab to a ‘standard’ Fab with a
defined elbow angle. (we use the unliganded Fab 8F5 (PDB code = 1bbd) as a
standard, elbow angle 127°). The Fab to be tested is first superimposed via its
variable domain (V_{L}-V_{H}) onto the variable domain of the
standard Fab. From this V-aligned orientation, the constant domain (C_{L}-C_{H}1)
of the test Fab is aligned with the constant domain of the standard Fab,
yielding the rotation relative to 1bbd. The sum of the standard Fab’s elbow
angle (127°) plus the θ_{3} domain rotation angle is then used to
resolve the degeneracy and to determine whether the elbow angle calculated by
the dyad dot product is direct or complementary (> 180°). This method has been
extensively used in previous reviews and compilations.
